Product Details
- Place of Origin: China
- Brand Name: chengnuo
- Model Number: T150

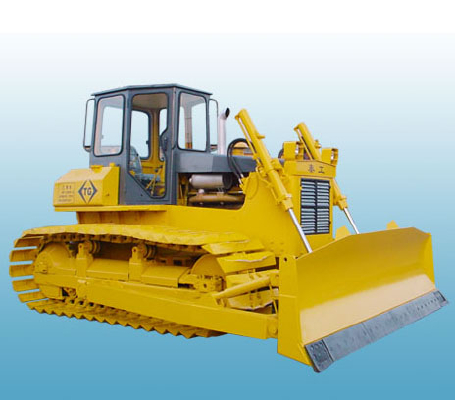

These medium-sized,
but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and
efficiently. T150 are equipped with a hydraulic drive system with hydraulic control technology and an advanced
structure, which provide reliable performance and convenient and flexible operation.
- Place of Origin: China
- Brand Name: chengnuo
- Model Number: T150
| 参数SPEGIFICATIONS | 单位UNIT | |
| ENGING | ||
| MODEL | 6135AK-4d，6130TLA,6126TI | |
| RATED POWER | 114/155 | KW/HP |
| RATED SPEED | 1800 | R/MIN |
| SPCIFIC FUEL CONSUMPTION AT RATED POINT | <238 | G/KW.H |
| SPCIFIC OIL CONSUMPTION | <2.7 | G/KW.H |
| MAX.TOROUE | 725 | N.M |
| UNDERCARRLAGE SYSTEM | ||
| TRACK GAUGE | 1880.2300（BS) | MM |
| WIDTH OF TRACK SHOE | 500，1000(BS) | MM |
| NO OF TRACK LINKS(EACH SIDE) | 38.42(BS) | 节 |
| LENGTH OF TRACK ON GROUND | 2515,2920(BS) | MM |
| GEAR | 2.73;3.88;4.76;6.25;7.57;10.63 | |
| FORWARD | 3.47;4.93;6.04;7.94 | KM/H |
| REVERSE | KM/H | |
| DOZER | 3360×1020，4135×1020(BS) | |
| STRAIGHT DOZER(W×H) | 3840×1020 | MM |
| ANGLE DOZER(W×H) | 1080，1050(BS) | MM |
| LIFTING HEIGHT | 450，400(BS) | MM |
| DIGGING | ||
| RIPPER(选配） | 3 | |
| RIPPER TOOTH | 550 | MM |
| LIFTING HEIGHT | 326,426,576 | MM |
| RIPPING DEPTH | ||
| 型号SPECIFIC MODFIED MODELS 参数SPEGIFICATIONS | T110B-14(上） T110B-17(天） 侧倾直铲 TILT STRAIGHT BOZER | T110B-16(天) T110B-33(上） 侧倾直铲、松土 TILT STRAIGHT DOZER WTTH RIPPER | T110B-18(天） T110B-15(上) 斜铲 ANGLEDOZER | T110B-20(天） T110B-34(上） 斜铲、松土 ANGLE DOZER RIPPER | T110BS-4(天） T110BS-5(上） 湿地、直铲 LOW GROUND PRESSARE |
| 外形尺寸 OWERALL DTMENSIONS(L×W×H)MM | 5374×3360×3030 | 6273×3360×3030 | 5465×3840×3030 | 6364×3840×3030 | 5516×4135×3056 |
| 结构质量 STRUCTURAL WEIGHT(KG) | 1550 | 17200 | 16100 | 17800 | 16600 |
| 使用质量 OPERATING WEIGHT(KG) | 1590 | 17600 | 16500 | 18200 | 17000 |
| 接地比压 GROUND PRESSURE(KPA) | 55.86 | 62.72 | 64.68 | 70.56 | 28.42 |
| 最大牵引力 MAX.TRACTIVE EFFORT(KN) | >132.3 | >132.3 | >132.3 | >132.3 | >132.3 |
| 最大生产率 （运距M)M³/H MAX.DOZING EFFICIENCY | ≥200(40） | ≥200(40） | ≥200(40） | ≥200(40） | ≥200(40） |
