Product Details
- Place of Origin: China
- Brand Name: chengnuo
- Model Number: T160

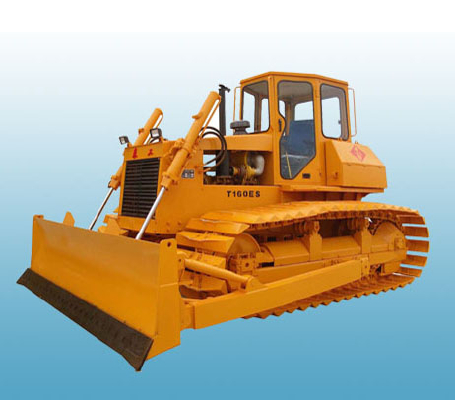

These medium-sized,
but heavy-duty machines designed for earth-moving projects get the biggest, toughest jobs done quickly and
efficiently. T160 are equipped with a hydraulic drive system with hydraulic control technology and an advanced
structure, which provide reliable performance and convenient and flexible operation.
- Place of Origin: China
- Brand Name: chengnuo
- Model Number: T160
| Parameter Model Specification | T160B side-tipping blade | T160B angle blade | T160BS | ||
| Major parameters | Overall dimension（Length×Width×Height）m | 4.97×3.36×3.12m | 5×3.8×3.2m | 5.41×4.05×3.12m | |
| Bulldozer blade type（Length×Width×Height）m | side-tipping blade | Angle blade | Straight blade | ||
| 3.54×3.36×1.18m | 3.7×3.8×1.1m | 4.0×4.05×1.1m | |||
| Scraper knife max.hoisting height | ≥950mm | ≥950mm | |||
| Scraper knife max.digging depth | ≥500mm | ≥500mm | |||
| Scraper knife cutting angle | 55º | 55º | |||
| Scraper knife max.lean degree | side-tipping blade816mm | Nothing | Nothing | ||
| Bucket capacity | 4.5m³ | 5m³ | |||
| Operating weight | 17000Kg | 18000Kg | |||
| Maximum traction | 177KN | ||||
| Ground pressure | 62.3Kpa | 24.4Kpa | |||
| Min ground clearance | 360mm | 420mm | |||
| Max Grade ability degree | Horizontal：30º Lengthways：25º | Horizontal：30º Lengthways：25º | |||
| 40m Haul distance work efficiency | 258m³/h | 240m³/h | |||
| Engine | Manufacturing company | Weichai Power Co.,Ltd | |||
| Model | WD615T1-3A WD615T1-6 | ||||
| Modality | Single-row vertcal,water cooling,four stroke,In-line direct injection. | ||||
| Rated speed | 1850r/min | ||||
| Rated power | 120kw/1h | ||||
| Fuel consumption | ≤198g/kw.h | ||||
| Oil consumption | ≤1.14/kw.h | ||||
| Maximum torque | ≥800N/M（1100-1200r/min） | ||||
| Drive Line System | Master clutch | Wet type,multidisc friction plate,lever-actuated,hydraulic power,springs separation,manual control. | |||
| Gearbox | Helical tooth meshing,coupling sleeve shift,pressure forced lubrication,four forward speeds and four backward speeds. Forward:2.75km/h；3.91km/h；5.49km/h、7.78km/h Backward：3.60km/h；5.11km/h；7.17km/h、10.18km/h | ||||
| Steering clutch | Wet type,multidisc combination,springs actuated,hydraulic separation,manual control. | ||||
| Arrester brake | Wet type,floating type,draper type,treadle type control,hydraulic power. | ||||
| Running System | Running frame | Tuck and pat splay beam type | |||
| Track roller | Each side:single piece4,doubling piece2 | ||||
| Carrier roller | Each side:2 | ||||
| Front idler | Each side:1 | ||||
| Track shoe quantity | Each side:38pieces | Each side：42，pieces,by using advanced ship-shape track shoe,the flotage is more buoyant than Ordinary track Shoe | |||
| Width of track shoe | |||||
